THE HEIRLOOM
SLEEPING CABIN

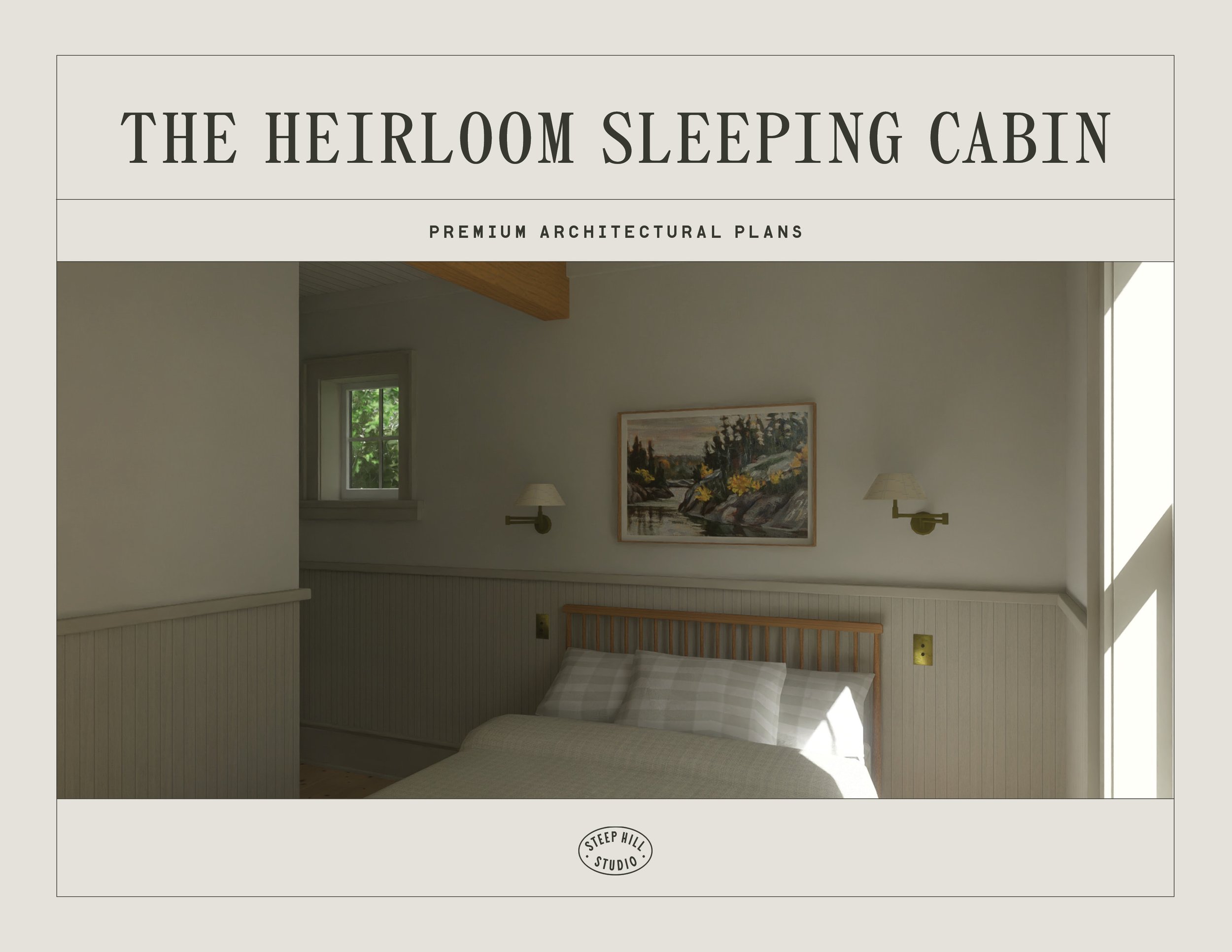

Premium Architectural Plans
Accelerate your cottage development with professional-grade plans and specifications.
A 555 Sq Ft PLAN
THAT FEELS SPACIOUS
1 Bedroom | 1 Bathroom | Open Living | Flexible Loft Space
This 16×28’ plan is the quintessential self-contained guest cabin. It provides the amenities of a luxury cabin within a compact footprint.
-
Total Living Area: ~555 sq. ft. (448 Main / 107 Loft)
Main floor bedroom with walk-in closet
Luxurious bathroom with walk-in shower
Spacious open living room with vaulted ceiling
Wet bar
Utility centre including dishwasher and laundry
Flexible loft space
not just a concept.

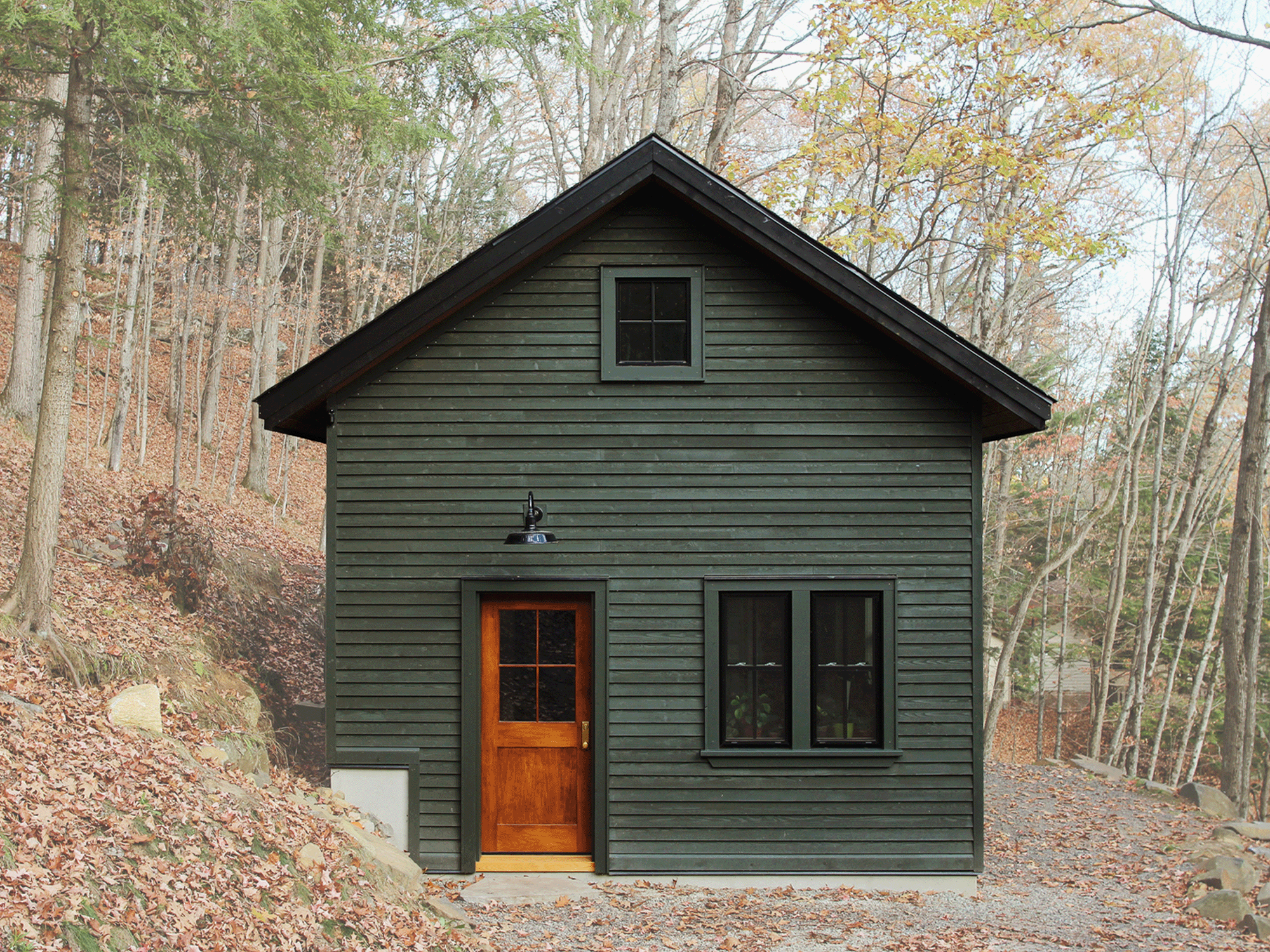

The Heirloom Sleeping Cabin has been built and field tested on a waterfront property in Muskoka, Ontario. Every material, fixture and finish has been lived with, and tested over seasons.
plan your CABIN with confidence.
INSIDE THE CABIN:
A Bright, Airy Atmosphere:
Large windows and a classic, half glass entry door flood the space with light. The living area features a vaulted ceiling, creating a spacious feel that defies the compact footprint.
Main-Level Comfort:
A primary bedroom tucked away from the common living area is spacious enough for a queen bed and includes a walk-in closet for storage and utility access. 9ft ceilings and classic wainscoting create a charming and restful space.
A Flexible Loft:
A 107 sq. ft. loft overlooks the living space below, providing the perfect overflow area for play, storage, or a quiet workspace tucked into the treetops. An ideal feature for families with kids.
An Elevated Bathroom:
A compact yet luxurious space designed for a refreshing start or a calm end to the day. This bathroom features a roomy walk-in shower and ample storage rarely found in a small-scale dwelling.
Thoughtful Lighting Design:
A professional lighting plan creates a warm, inviting atmosphere through every season. Carefully placed and thoughtfully chosen interior fixtures highlight the vaulted architecture and ensure a cozy, well-lit sanctuary at any hour.
Comprehensive UTILITY ZONE:
The integrated utility zone provides modern convenience without compromising the cabin's heritage charm. This area is expertly planned to house both laundry and a dishwasher, making it a fully capable space for longer-term seasonal stays or quick turn around guest stays.
THE STYLE:
HEIRLOOM COTTAGE
A return to the honest, well-built cottage. These plans blend early 20th-century inspiration with modern performance to describe a building with state of the art bones and a classic, old soul.
-
Heirloom Quality: These plans and specifications provide the details needed to ensure that the cabin looks as good (or better) in 50 years as it does on day one.
Heirloom Palette: A curated selection of materials, fixtures, and finishes that capture the soul of old Muskoka cottages.
Validated: Every specified material has been vetted for functionality, durability, and most importantly, positive aging properties.
What’s Included in
Your Plan Set?
A Blueprint for an Heirloom

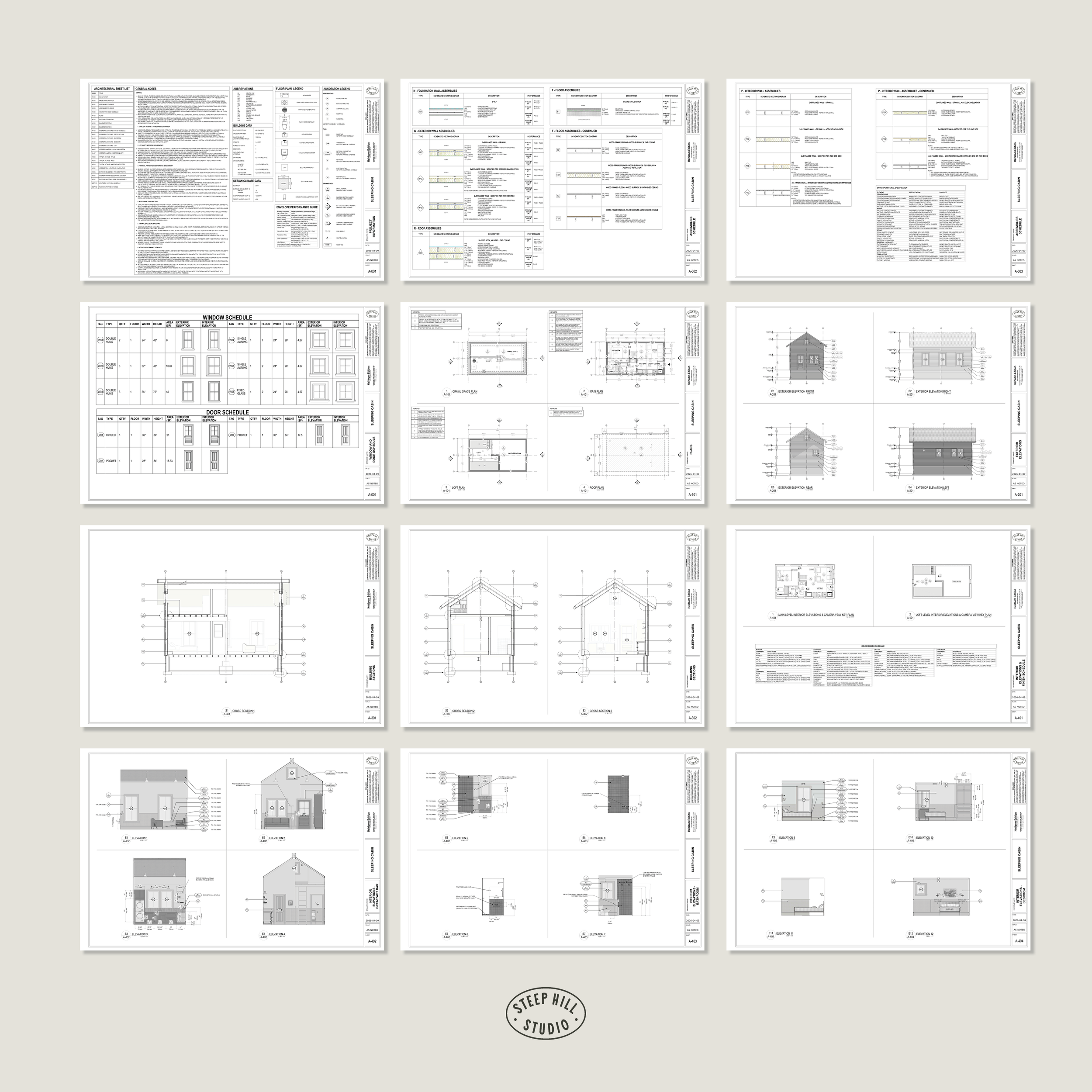

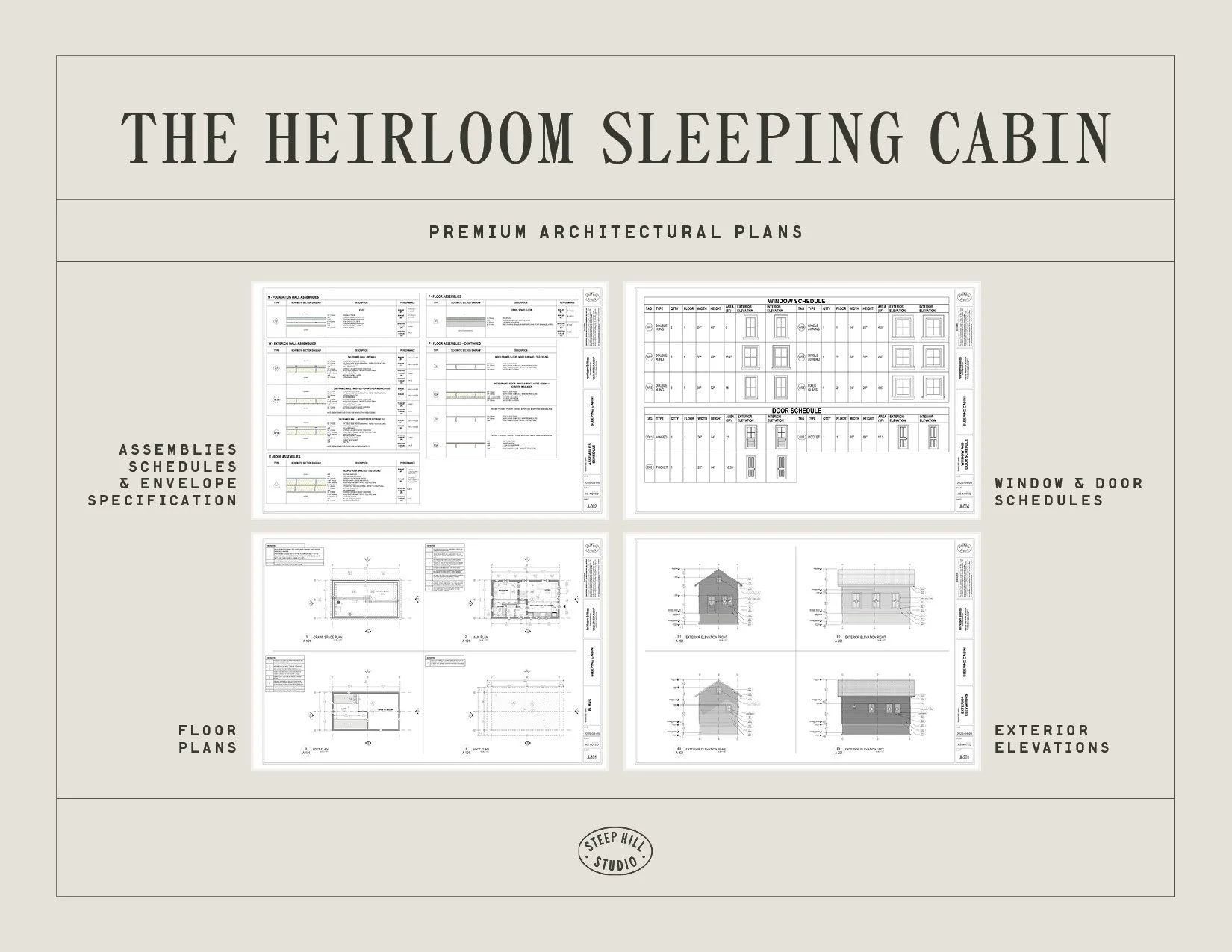

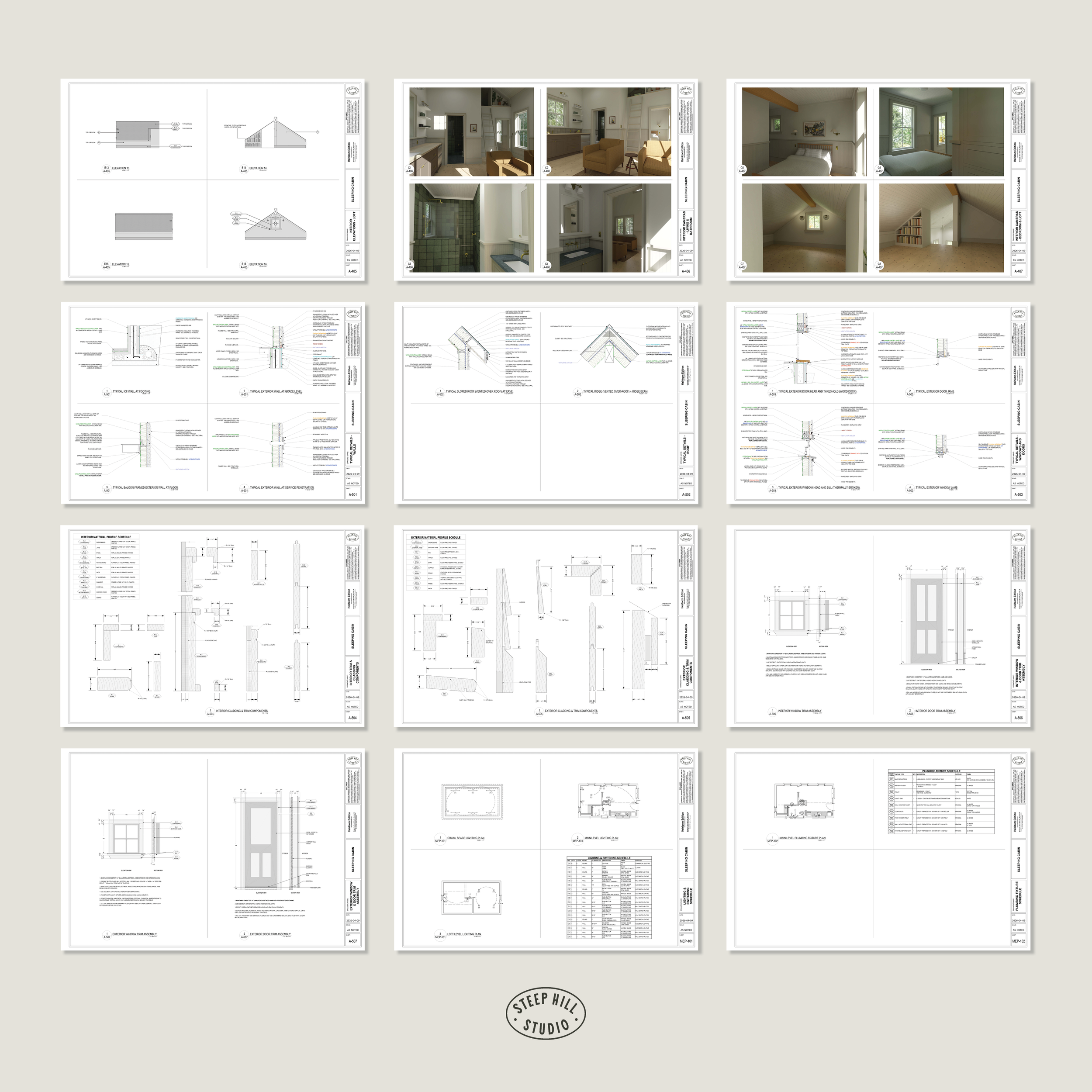

Our architectural plan set provides a meticulously detailed description of the key building and finishing details you need to move your cabin dream into reality. This set is designed to eliminate ambiguity, facilitating productive and actionable conversations with family, friends, and local building professionals.
-

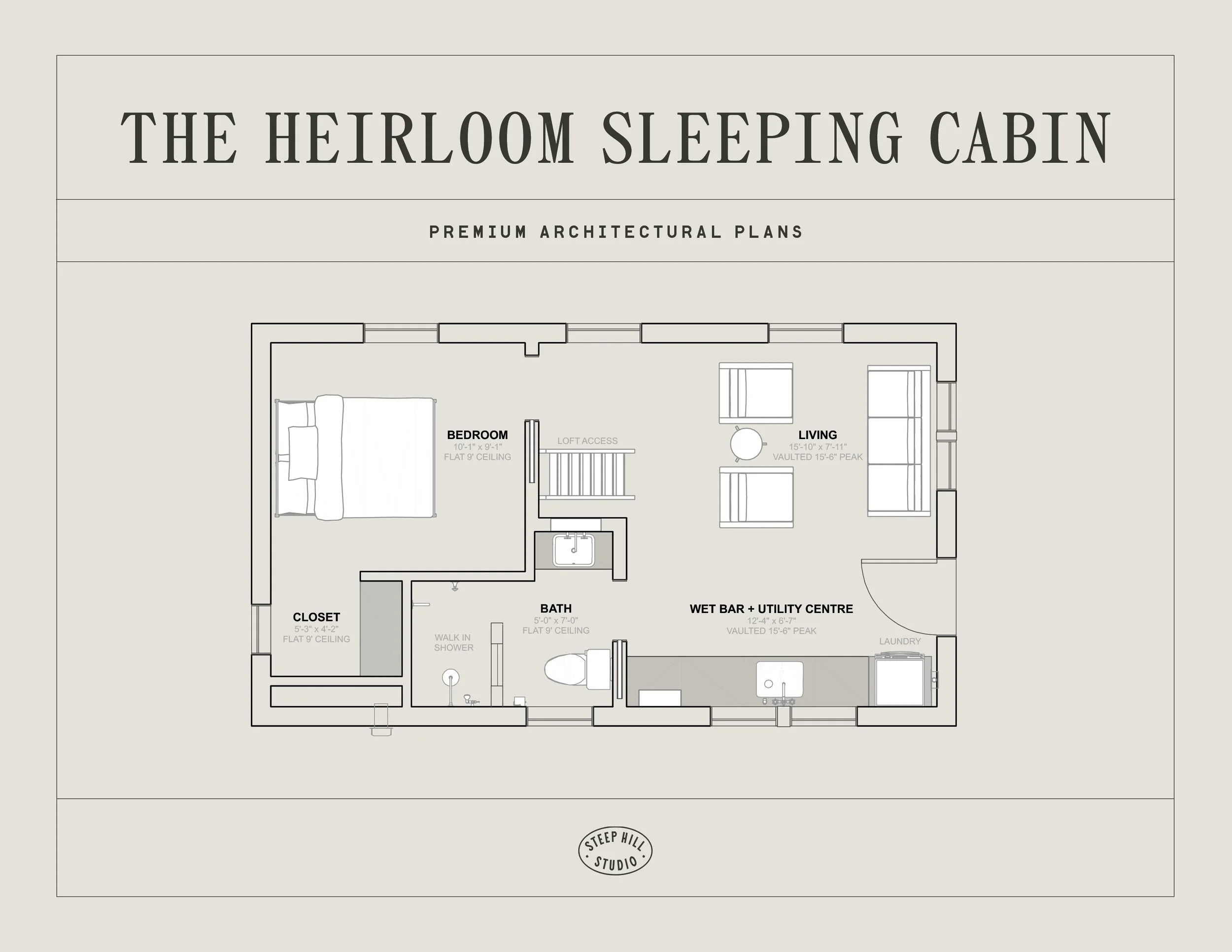

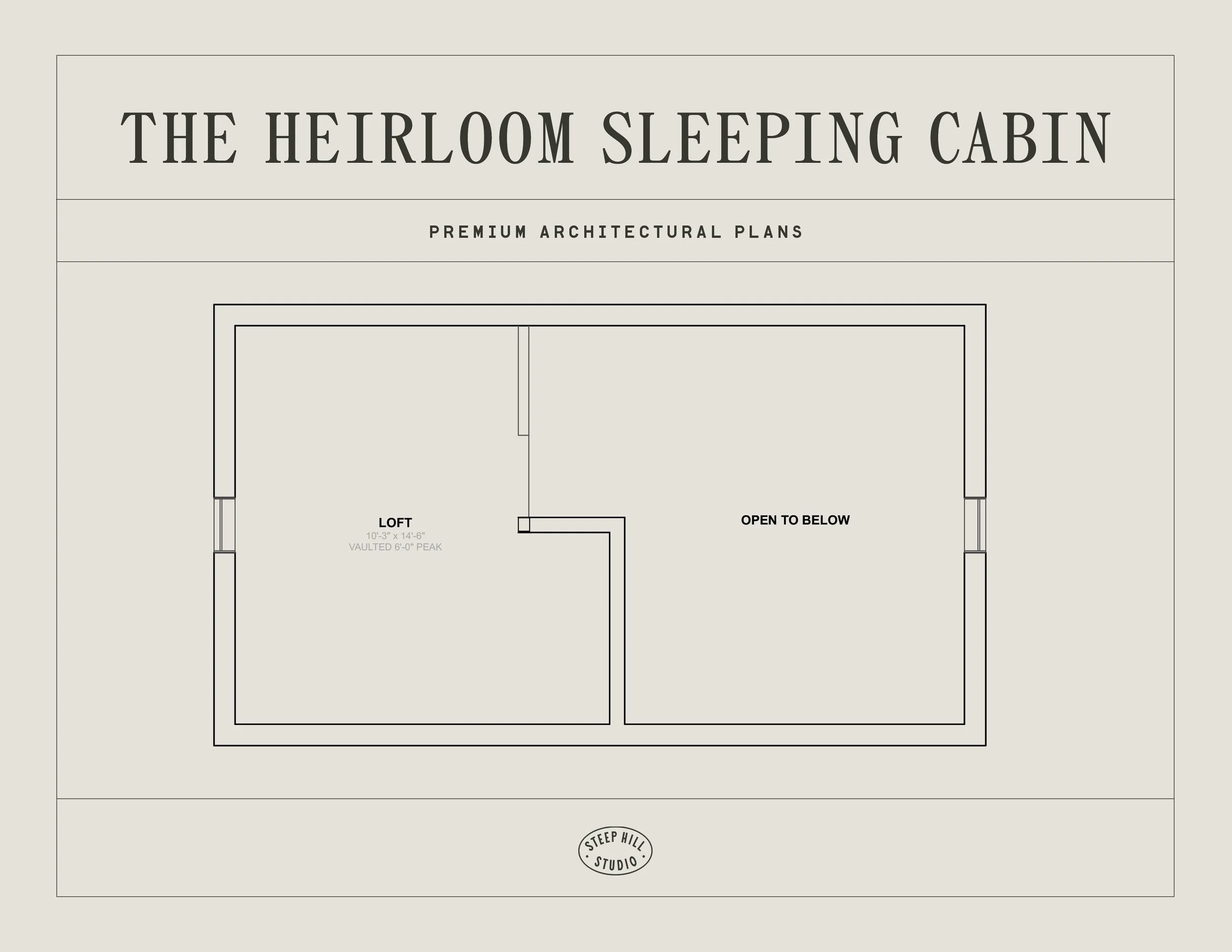

Comprehensive Floor Plans: Includes detailed layouts for the crawl space, main level, loft, and roof.
Exterior Elevations: Four-sided detailed elevations showing exact dimensions, window and door placements, and material callouts.

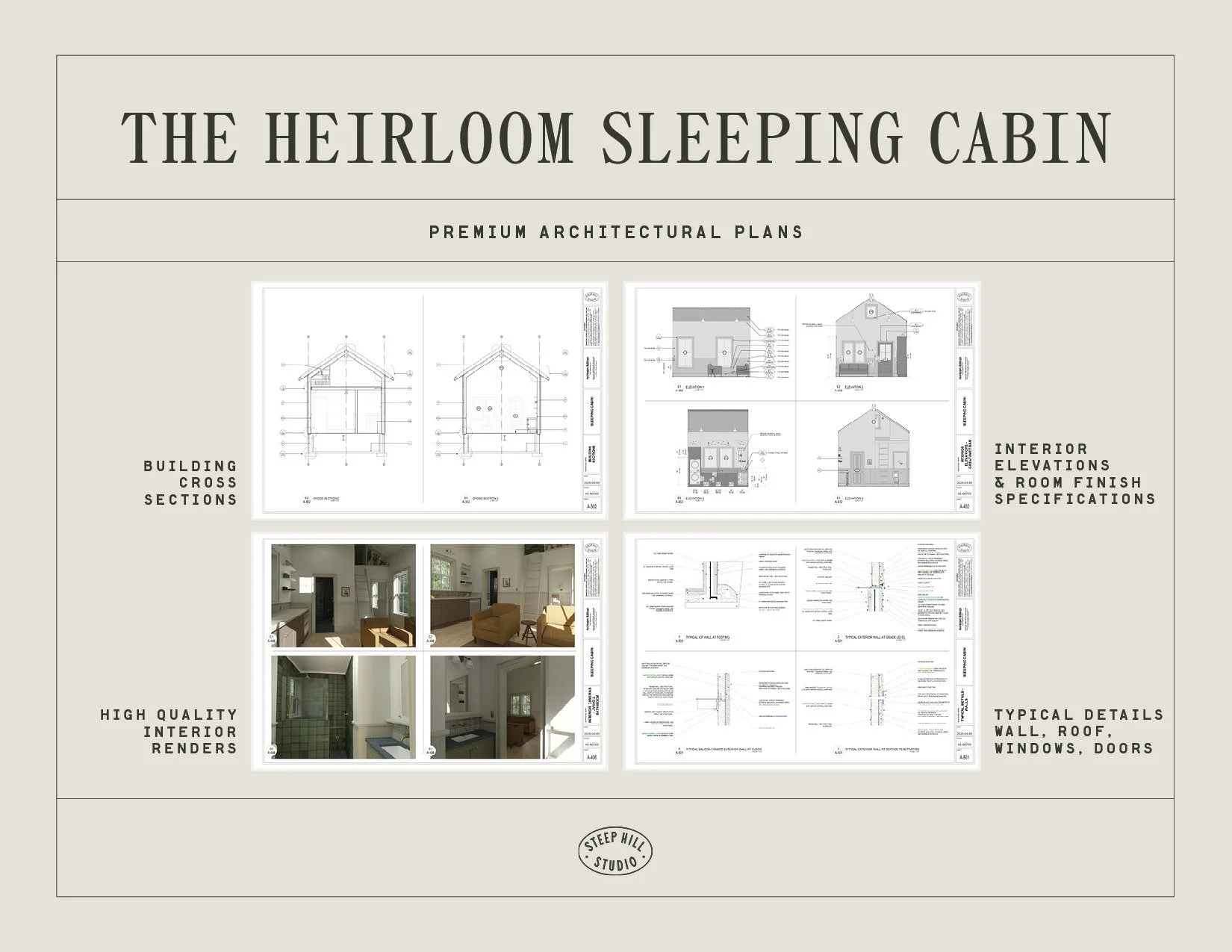

Building Sections: Cross-sections illustrating the vertical relationships between partitions and floor levels.
Interior Elevations & Camera Views: Detailed views for every room—including the Great Room, Wet Bar, Bathroom, Bedroom, and Loft to guide millwork and finishing.
High-Performance Assemblies: Explicit schedules for wall, roof, floor, and foundation assemblies optimized for cold-climate performance.

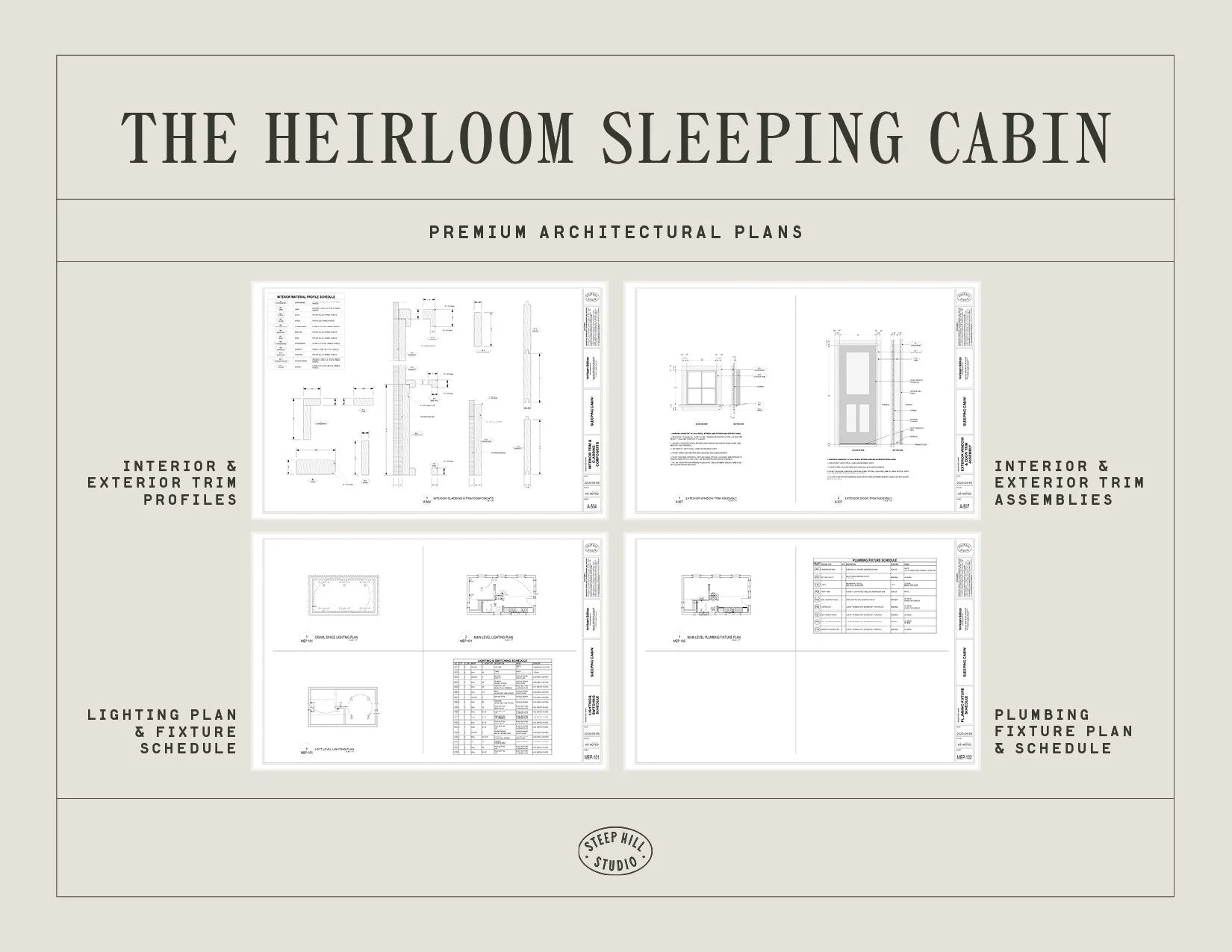

Full Component Schedules: Organized specifications for windows, doors, lighting, switching, and plumbing fixtures.
Heirloom Trim & Cladding Details: Exact, scale profiles and assembly schematics for both interior and exterior trim components.
-
While these plans provide the complete architectural vision, every site is unique. To move to the permit phase, you will need to add site-specific engineering for local compliance.
We’ve made this easy. Through our Ruhl Builds partnership, we offer a Building Permit Support Service for Ontario clients to handle:
Site-specific Structural Engineering & Seals.
HVAC Design & Heat Loss Calculations.
Permit Coordination and Supporting Documents
ALSO INCLUDED:
THE STUDIO PASS
Your plan purchase includes an unlimited, all-access pass to The Studio. This is our private library of design and building resources, developed to bridge the gap between architectural drawings and a finished project.
From insightful videos to interior style guides and material source lists, the Studio ensures you have the expertise of the Steep Hill team at your fingertips throughout your entire build.
Code provided offers unlimited access. TOPICS COVERED IN THE STUDIO
-
20 Design Details That Make a Small Home Feel Spacious
Building a Small Home: A Year In The Making
Small Space Planning With a Tetris Mindset
From Basic To Heirloom - The Cost of Building a Better Small Home
The Sleeping Cabin Tour (Video)
-
Heirloom Cabin Interior Style Guide & Source List
Heirloom Cabin Exterior Style Guide & Source List
Get Your Exterior Lighting Design Right (video)
Small Details, Big Impact: Roofline Elements
Trim Details That Make a Difference
Recessed Medicine Cabinet Inspiration
Wainscoting & Trim Guide
Heirloom Interiors: Where To Save and Where To Spend
Inspiration For Soulful Design When Building New
How To Find Vintage Gems on Facebook Marketplace
-
The Rough-in Series - Part Four - Data & Media (Coming Soon)
The Rough-in Series - Part Three – Plumbing (Coming Soon)
The Rough-in Series - Part Two – Electrical (video)
The Rough-in Series - Part One – HVAC (video)
How We Saved $26,000 On Cedar Siding (video)
Notes On Common Window Styles
How To Craft a Custom Cottage Door (video)
Pocket Door Guide
Pros & Cons of Pocket Doors
Why We Recommend Waiting Before Renovating
Tips For Building in Difficult Weather
-
The Steep Hill Global Garden Update (video)
Seeds To Create a Pollinator Paradise
Garden Protection That Looks as Good as It Works (video)
Heirloom Fencing: Cedar Split Rail (video)
The Most (& Least) Deer Resistant Flowers at Steep Hill
Fall Garden To-do List
Autumn Workwear Capsule
-
Exterior Lighting Guide
Door Hardware
Light Fixtures
Switches, Plates and Plugs
Pine Flooring
Essential Garden Tools
Exterior Materials
Kitchen Fixtures and Finishes
Bathroom Fixtures
Bathroom Tile and Countertop
Interior Paint Colours
READY TO GET STARTED?
The Heirloom Sleeping Cabin ARCHITECTURAL PLANS
Jumpstart your cabin build with premium quality plans. Better design. Fewer decisions. More cottaging.
Investment: $750.00 CAD
YOUR PLAN Questions ANSWERED:
-
Developed by a Professional Engineer and Designer. Meet the team.
Meticulous technical drawings and finishing details make a successful result achievable.
Prototyped and field-tested in Muskoka, ON.
Complimentary unlimited access to exclusive building and design content in The Studio included with every plan.
-
An instant PDF download will be sent upon receipt of your order. You can print the files as many times as needed. They are formatted for 24 × 36 and fit on 11 x 17 paper at a ½ scale.
-
The Short Answer: Not on their own, but they are the essential first step.
These plans are conceptual designs that provide the architectural description of your cabin. Because building codes and environmental conditions (like snow loads and soil types) vary significantly across different regions, all ready-made plans must be "localized." To obtain a permit, you will typically need to add:
Site-Specific Engineering: Foundation and structural details tailored to your property’s soil and topography.
Mechanical & Energy Calculations: HVAC design (heat loss/gain) and plumbing/electrical specifics required by your local municipality.
A Professional Seal: Review and validation by a local qualified professional who assumes responsibility for the design's compliance with local laws.
Building In Ontario? We Can Help: If you are building in Ontario, we can simplify this process for you. For an additional fee, our team can provide the necessary structural engineering, energy modelling, and site-specific adaptations required for a permit submission.
Get In Touch with us today, and we can help you map out the path to breaking ground.
-
Architectural Plans focus on the layout, style, building assemblies and finish specifications.
Structural Plans focus specifically on the physics of the build. They define what is required to support the architectural vision under site specific loads.
Both are critical to a successful build and both require an amount of customization to adapt to particular site conditions. Architectural plans are more broadly adaptable where efficient structural plans are highly site specific.
Building In Ontario? We Can Help: If you are building in Ontario, we can simplify this process for you. For an additional fee, our team can provide the necessary structural engineering, energy modelling, and site-specific adaptations required for a permit submission.
Get In Touch with us today, and we can help you map out the path to breaking ground.
-
Construction costs will vary depending on your contractor and your site.
As a general guide, if you intend to finish the cabin as specified in the Heirloom Sleeping Cabin architectural plans and style guide, we recommend carrying around $350 CAD/square foot.
-
Absolutely! For plan customizations, permit ready structural plans, or a bespoke design tailored to your lot, please Get In Touch and we will provide an estimate specific to your project requirements.
-
Muskoka is a challenging building environment, not just in terms of topography and climate, but also from a regulatory perspective.
The Heirloom Sleeping Cabin Plan has been developed to meet stringent zoning requirements for waterfront residential sleeping cabins at Lake of Bays, ON (a stringent regulatory environment).
THE SLEEPING CABIN ADHERES TO:
Height Restrictions: limited to 5.6 m (18’4”)
Gross Floor Area Restrictions: limited to 54 sq. m (581 sq. ft)
-
Due to the digital nature of our architectural plans, all sales are final.
-
Start with a thorough review of the architectural set and explore the resources in The Studio.
From there, your next move should be connecting with a local licensed builder and designer to review the plans, confirm site specific requirements, and provide a formal construction quote.
If you are local to Muskoka, ON, we can assist with this step. Please Get In Touch when you’re ready to get started.
-
Individual technical support and permit coordination are not included in the plan price.
For in-depth guidance or building support, please Get In Touch to discuss a formal engagement. -
We do not offer a material take-off list. Most contractors prefer to conduct their own take-off calculations and in our experience, it is best that they do.
We provide detailed material and fixture selections in the plan to ensure the architectural integrity of the build is upheld.
In The Studio you’ll also find a complete Heirloom Cabin Style Guide and source list.
-
Our designs account for standard HVAC duct routing and equipment placement, but detailed HVAC plans are not included. These systems are highly specific to your local climate, home orientation, and insulation quality. We recommend working with a local specialist to ensure your system is tailored to your specific needs and meets local energy regulations.
-
Steep Hill Studio plans include wet bar, closet and bathroom cabinetry layouts and appliance sizing.
-
Yes, these are specified in the plan and further detailed in The Heirloom Cabin Style Guide (included in The Studio). We only suggest products we have used in our own projects and found to be of excellent quality.
Please note that we cannot guarantee manufacturer availability, as products may be altered or discontinued without our knowledge. -
Yes. All paint colours, including sheen and application methods, and all materials used are specified within the Heirloom Cabin Style Guide (in The Studio).
-
We prioritize constructibility and have field tested all assemblies and details; this is a very buildable plan. That said, these are professional architectural plans designed for professional results. To ensure structural integrity and a quality finish, we recommend partnering with an experienced builder.
If you are local to Muskoka, ON, we can assist you to bring your cabin to life. Get In Touch to get discuss your project.
Looking for HELP WITH A PERMIT OR a CUSTOM Design?
If your property requires a unique footprint, specific structural modifications, or a completely custom architectural vision, we can help.
We conduct this work through Ruhl Builds, our design and engineering studio, based in Muskoka, Ontario.
