BUILD YOUR SANCTUARY:
The Heirloom Sleeping Cabin

Proven design,
built for reality

Expertly engineered and designer led, the Heirloom Sleeping Cabin is a field tested design ready for your lot. Whether building a guest sanctuary or a strategic first phase for your property, these plans will get you well on your way.

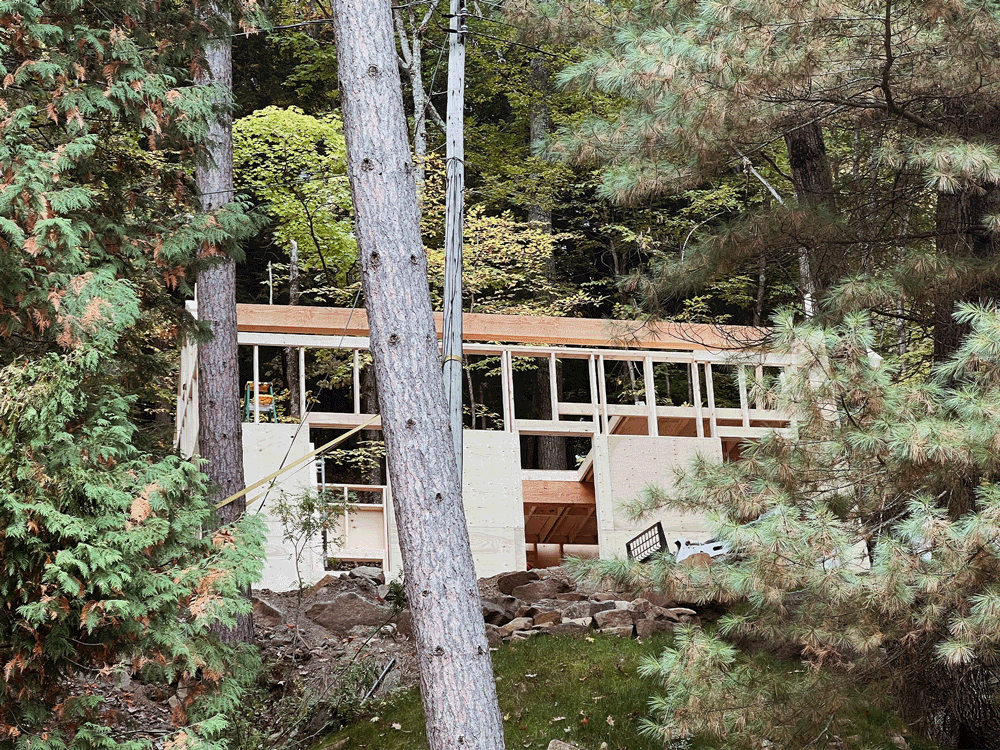

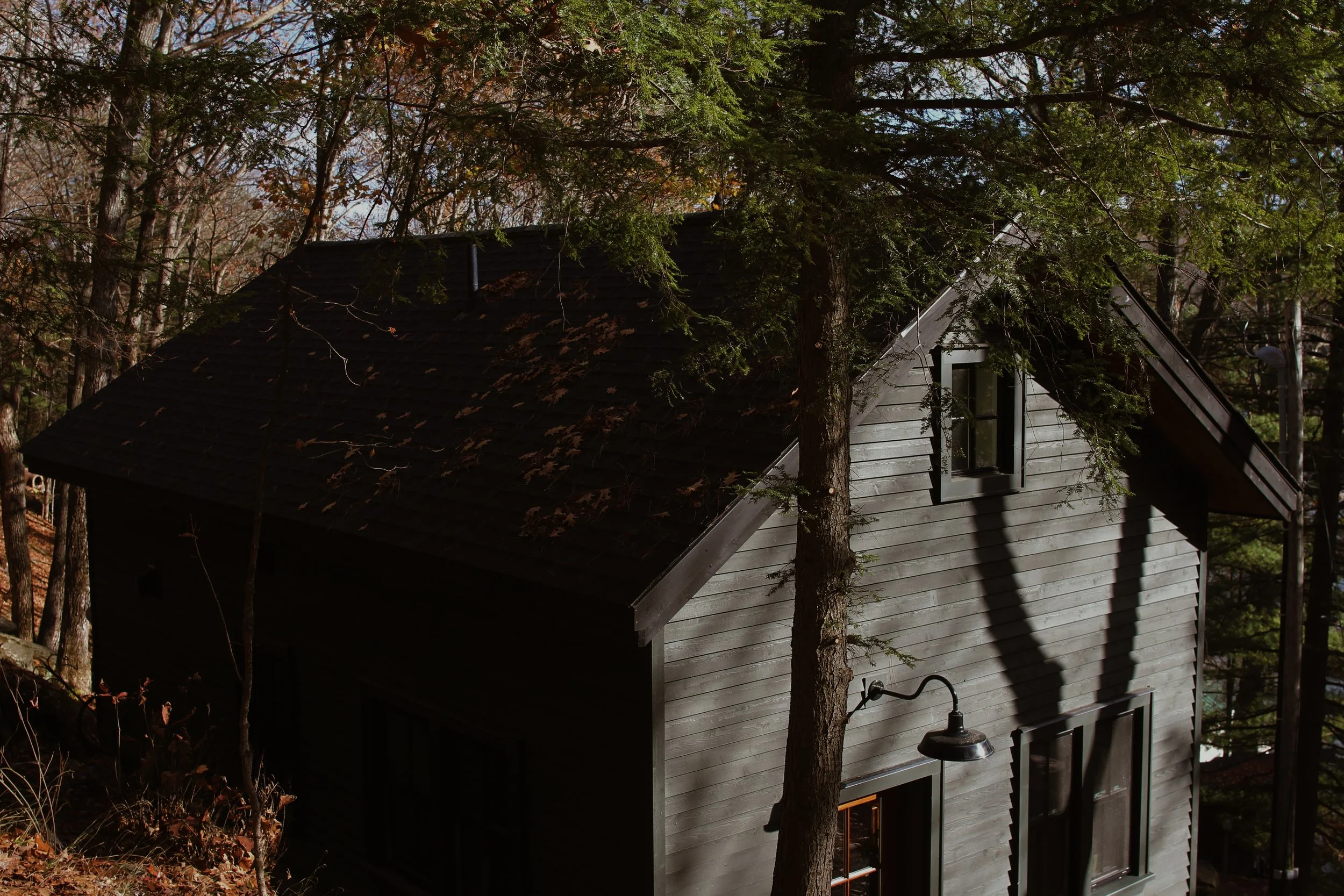

Unlike the majority of building plans on the market, the Steep Hill Heirloom Sleeping Cabin is not a concept, it is a reality. We didn’t just draft these plans; we built them on our property in Muskoka and called this cabin home for over a year and a half.

Every material, finish, and fixture has been tested for functional durability and enduring style. Expertly developed by a Professional Engineer and Designer team, these plans offer a bridge between heritage charm and modern structural integrity.

The layout:

Heritage style meets

practical living

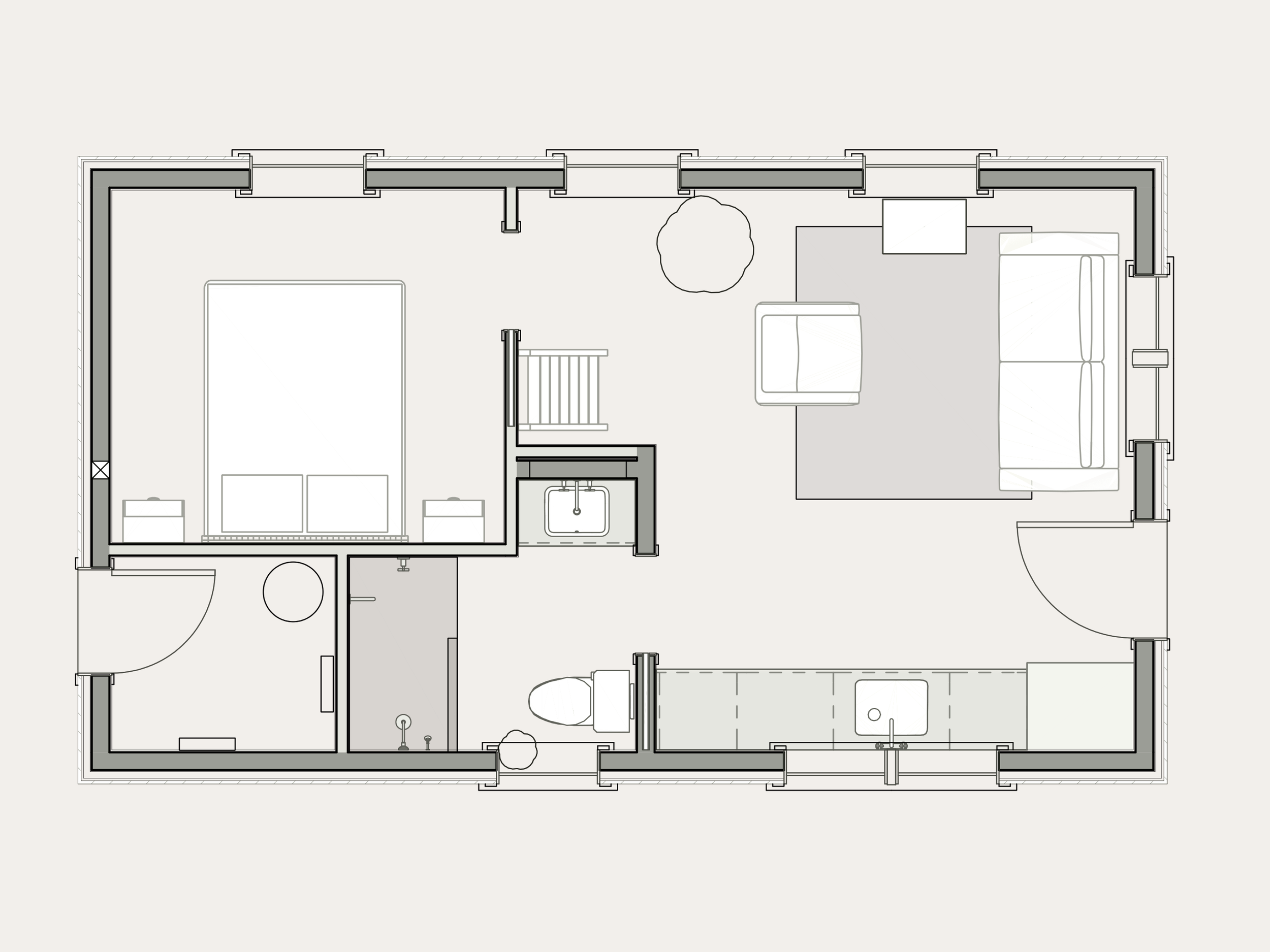

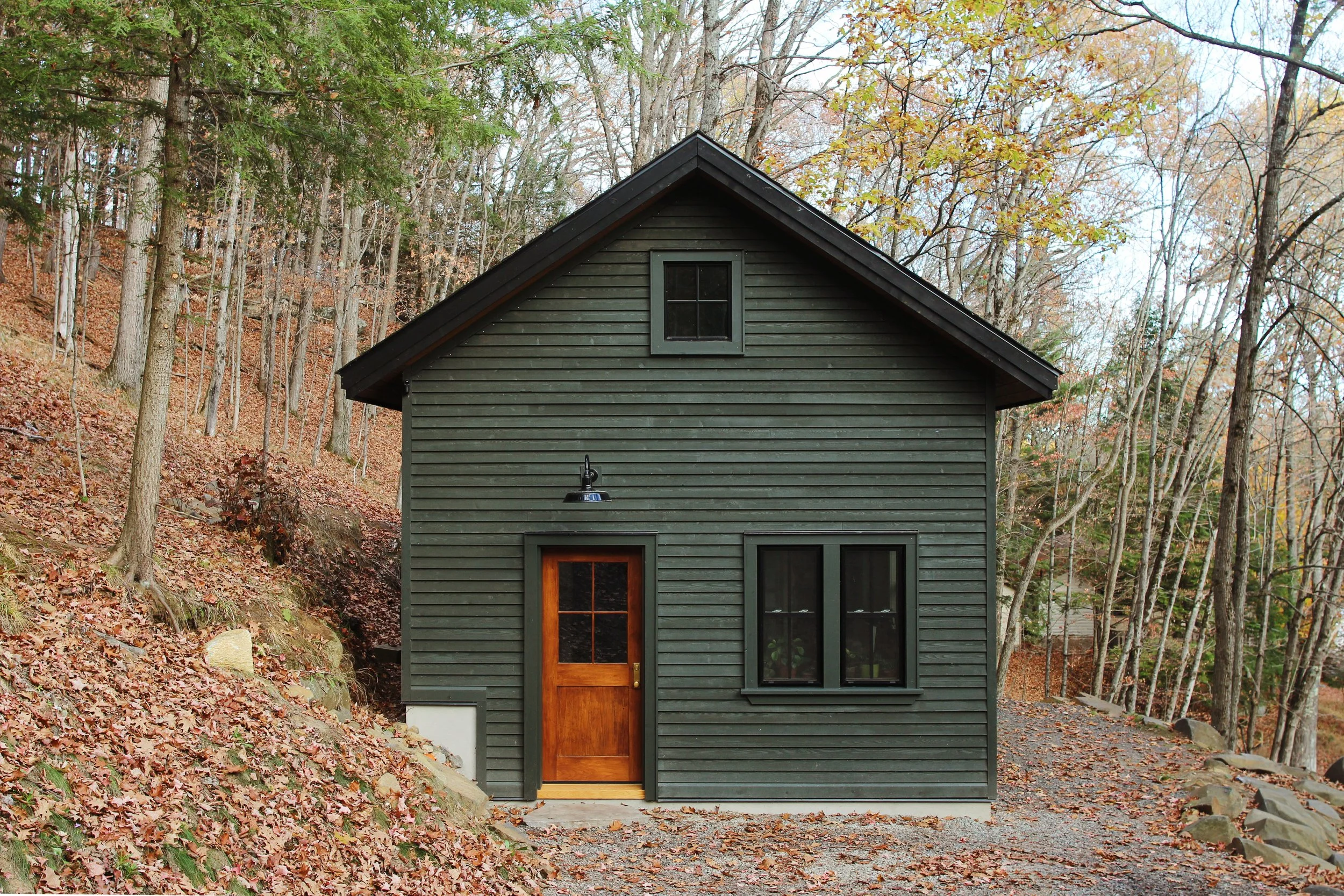

This 16×28’ cottage-style home is designed to maximize every inch of its footprint.

Whether you are building a lakeside getaway, a guest sanctuary, or a secondary dwelling, the Heirloom Cabin offers:

A Bright, Airy Atmosphere:

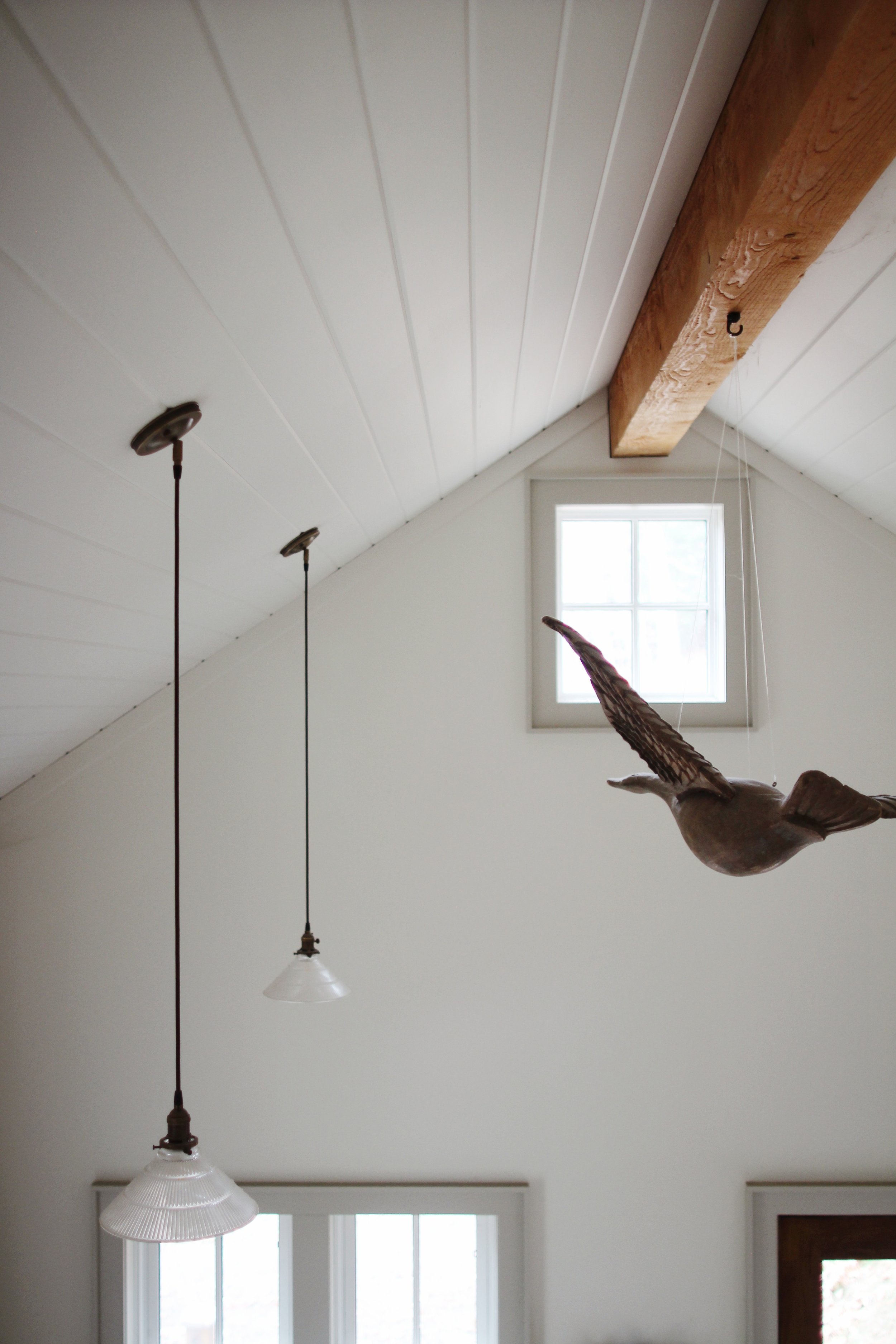

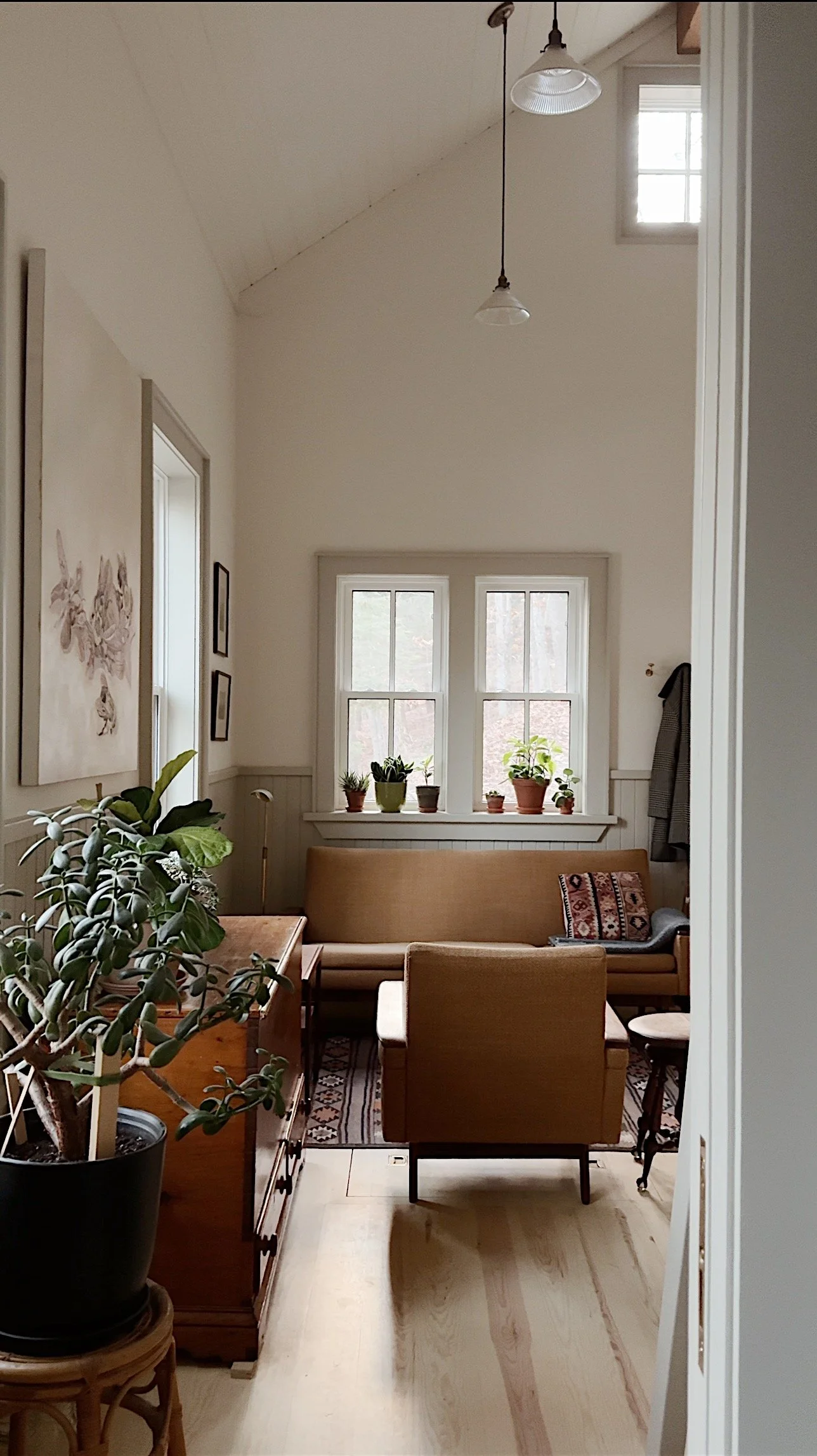

Large windows and an entry door with a substantial divided lite flood the space with light. The living area features a vaulted ceiling, creating a spacious feel that defies its compact footprint.

Main-Level Comfort:

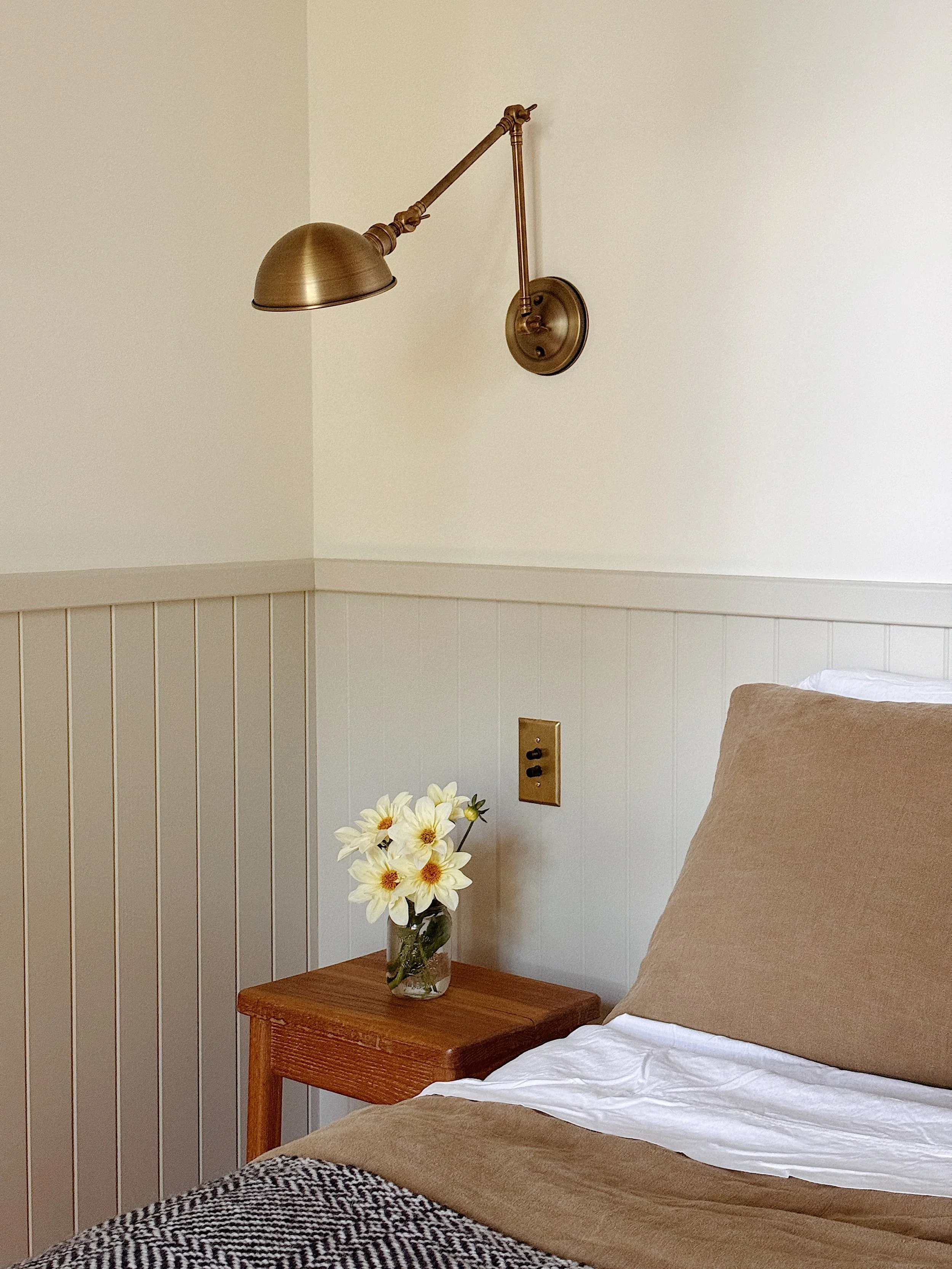

A primary bedroom tucked away from the common living area is spacious enough for a queen bed and includes a walk-in closet for storage and utility access. 9ft ceilings and classic wainscoting create a charming and restful space.

The Flexible Loft:

A 107 sq. ft. loft overlooks the living space below, providing the perfect overflow area for sleeping, storage, or a quiet workspace tucked into the treetops. An ideal feature for families with kids.

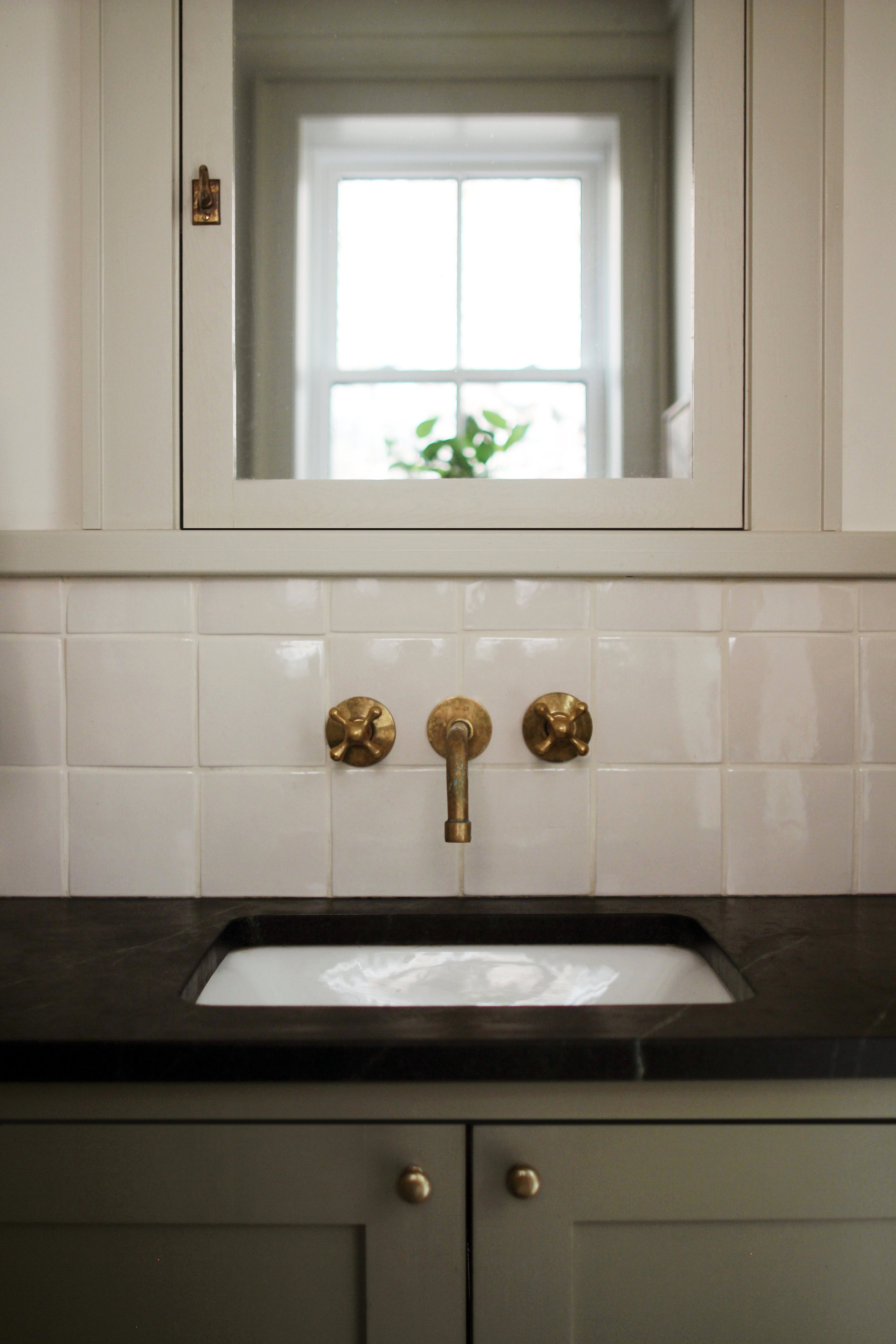

An Elevated Bathroom:

A compact yet luxurious space designed for a refreshing start or a calm end to the day. This bathroom features a roomy walk-in shower and custom vanity cabinetry, offering a sophisticated aesthetic and functional storage rarely found in a small-scale dwelling.

Thoughtful Lighting Design:

A professional lighting plan creates a warm, inviting atmosphere through every season. Carefully placed interior fixtures create a lighting plan designed to highlight the vaulted architecture and ensure a cozy, well-lit sanctuary at any hour.

Comprehensive UTILITY ZONE:

The integrated utility zone provides modern convenience without compromising the cabin's heritage charm. This area is expertly planned to house both laundry and a dishwasher, making it a fully capable space for long-term stays or high-turnover rentals.

What’s Included in Your Plan Set?

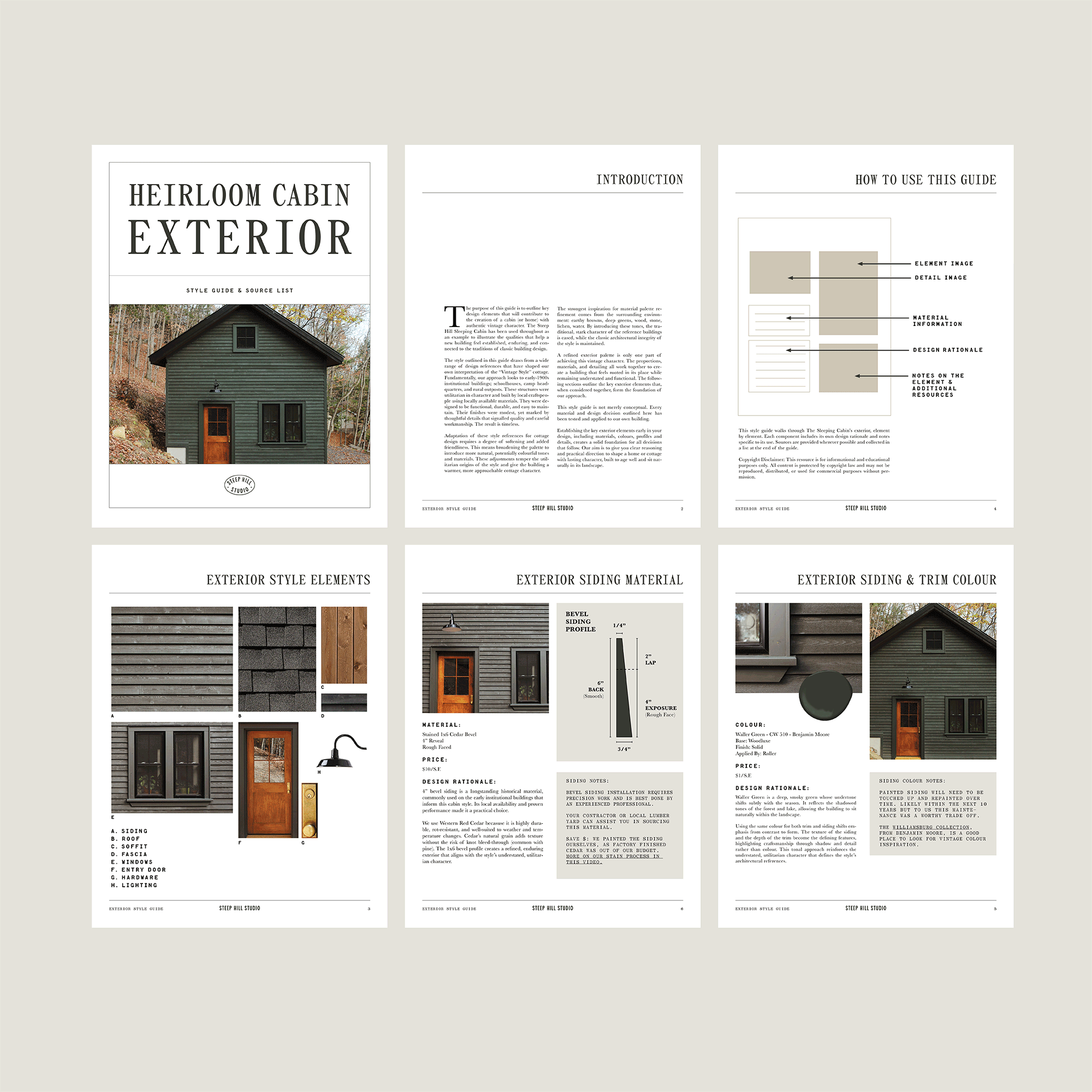

The Steep Hill Style Guides:

To help you achieve the exact look of the original Heirloom Cabin, we’ve included:

  • Exterior Style Guide: All materials and sources, including windows, door hardware, lighting, and specific stain/paint colours.

  • Interior Style Guide: All fixtures and finishes, including plumbing, lighting, hardware, and surface materials like tile and stone.

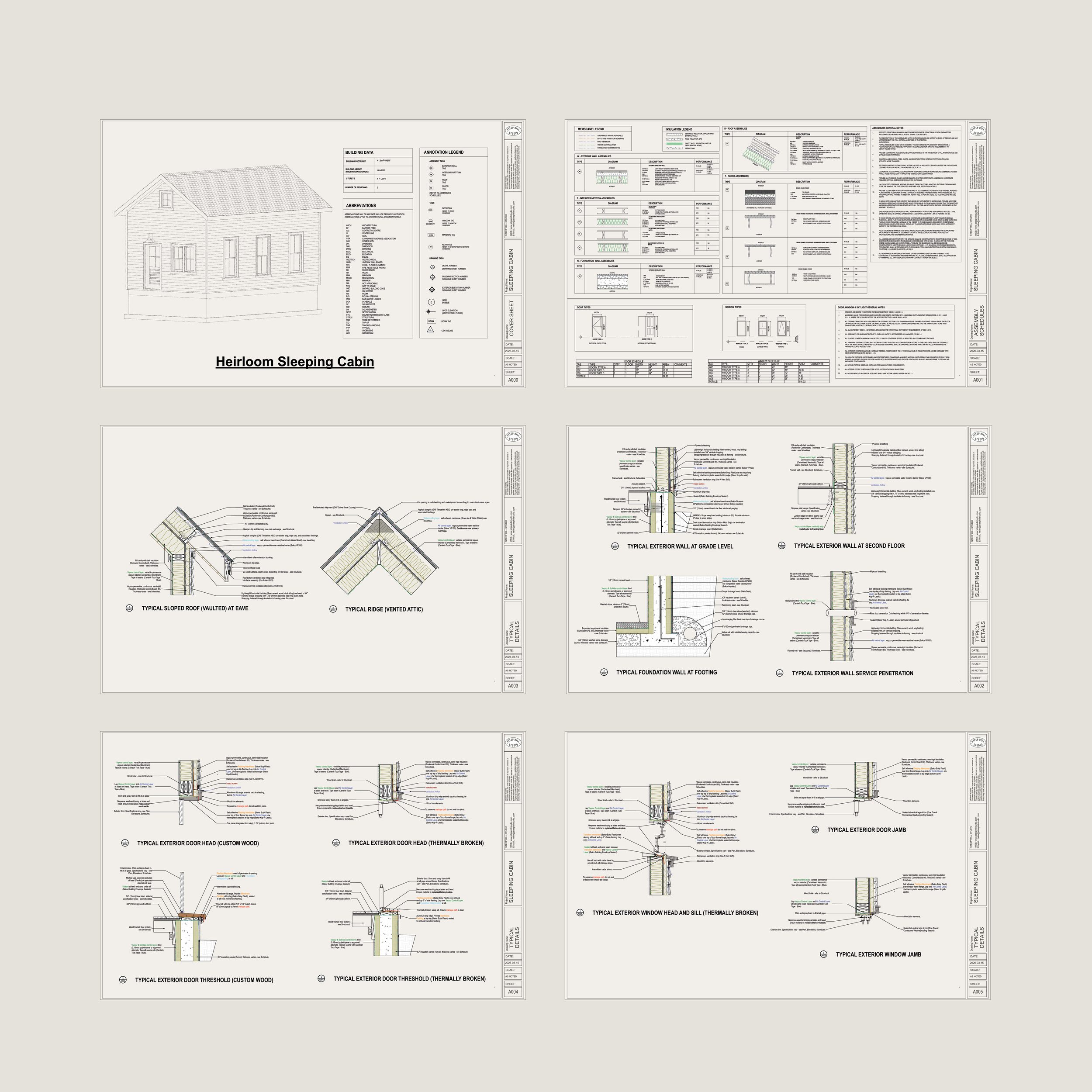

The Technical Drawings:

This comprehensive architectural set provides the essential information your builder or contractor needs for quoting and planning.

  • Cover Sheet, Abbreviations & Assembly Schedules

  • Foundation, Main Floor, Loft, and Roof Plans

  • Elevations, Cross-Sections, and Typical Details (Walls, Roof, Doors, Windows)

  • Electrical Plan, Lighting Schedule, and Millwork Schedule

Frequently Asked Questions

  • They are fully validated. Built by David Ruhl, P.Eng, and designed by Lee Vosburgh, BDes, these plans have been "field-tested" by our own daily lives in the Canadian climate. We’ve done the work of ensuring the layout is as functional as it is beautiful.

  • You will receive an instant digital download. You can print the files at 1/4" = 1' scale on 24" x 36" paper as many times as needed.

    Note: The download link expires 24 hours after your first access.

  • These plans are for informational purposes and do not include engineering or architectural stamps. Local codes vary by region, therefore it is best to consult with a licensed builder or architect in your area before beginning construction.

    If you are local to Muskoka ON, we are able to provide permit-ready drawings for your build. Please GET IN TOUCH and we will be happy to help.

  • Yes! We’d love to help you customize the plans to suit your needs and lot best. For plan customizations, permit-ready structural plans, or a bespoke design tailored to your specific lot, please GET IN TOUCH.

  • These plans are designed to be self-explanatory for professional builders and include our curated Interior and Exterior Style Guides. Individual technical support, site-specific consulting, and permit coordination are not included in the plan price.

    If you require modifications, engineering, or a bespoke design for your lot, we are happy to help. Please GET IN TOUCH to discuss your project.

Ready to bring your dream

retreat to life?

Whether you are planning a weekend escape or a strategic first phase for your property, these professionally engineered plans are the perfect foundation.

GET YOUR PLANS

Please Note: The Heirloom Sleeping Cabin Plans are delivered as an instant PDF download (designed to print on 11×17” sheets). The download link will expire 24 hours after your first download. As this is a digital product, all sales are final.

These drawings are for informational purposes and do not include engineering or architectural stamps; please consult a local professional for building code compliance.

All designs are ©Steep Hill Studio Plans for personal use only.
